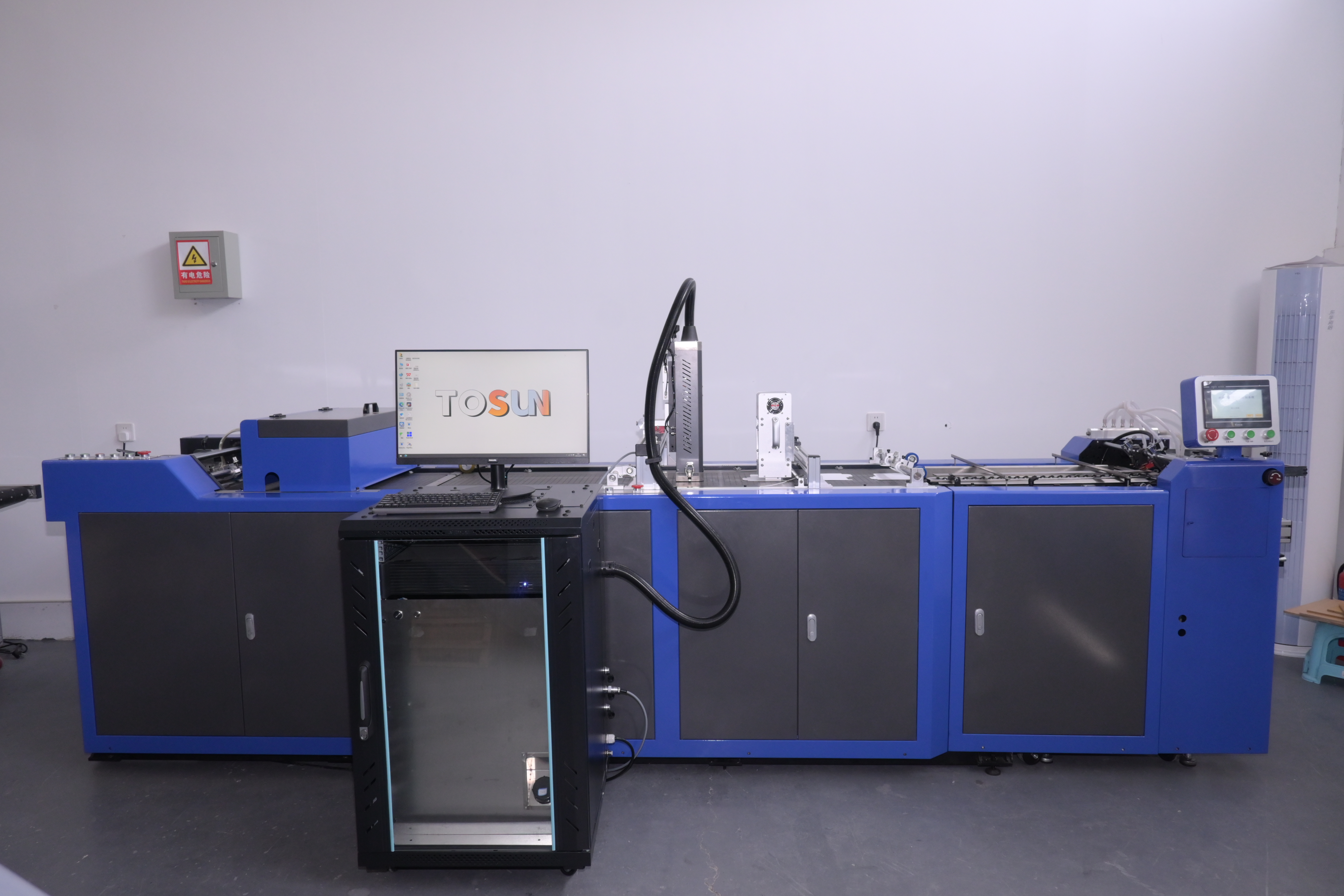

TSG400-D350小异型单张盒高速UV喷墨打印系统
High-speed UV inkjet printing system for small sheets of heterosexual boxes
TSG400-D350适用于单张纸或模切后的医药包装盒、烟包、日化包装盒、食品包装盒和成型纸袋、成型塑料袋等产品的可变数据赋码，可选配相机检测系统，防止不良品进入下道工序,提高生产效率与品质。
TSG400-D350 is suitable for variable data coding of single-fed or die-cut pharmaceutical packaging boxes, cigarette packs, daily chemical packaging boxes, food packaging boxes and molded paper bags, molded plastic bags and other products.Optional camera detection system to prevent defective products from entering the next process and improve production efficiency and quality.
主要技术参数 Technical Parameters : | |
设备型号Model | TSG400-350 |
喷头类型Nozzle | 工业级压电喷头 Piezoelectric nozzles |
分辨率Resolution | 横向Transverse:600DPI 纵向Longitudinal:100DPI—2400DPI |
打印宽度Print width | 单个喷头Single sprinkler：54mm |
喷印内容Print content | 支持40 多种一维条形码类型（CODE-128ABC,UPC-AE,CODE39 等） 支持7 种二维码类型（QRCODE、PDF417、DATAMATRIX等） 支持图形文字功能（数字、字符、汉字）隐形码等 |
油墨类型Ink type | UV油墨Ink (环保 Eco-friendly) |
适用油墨颜色Ink color | 青C、品红M、黄Y、黑K、白W和专色Spot colors |
墨路系统Ink control system | 集中供墨控制负压精度±0.05Kp Negative pressure accuracy ± 0.05Kp |
**产品尺寸Max Size | 450*350mm |
最小产品尺寸Min Size | 120*120mm |
适用纸张Applicable paper | 60-300gsm |
喷码速度Speed | 50-100M/Min
|
堆纸高度Pile height | 300mm-600mm |
整机尺寸Machine size | 3962mm*994mm*1154mm |
